Dual OT solvers for entropic and quadratic regularized OT with Pytorch — POT Python Optimal Transport 0.9.6 documentation
Note
Go to the end to download the full example code.
Note
Example added in release: 0.8.2.
# Author: Remi Flamary <remi.flamary@polytechnique.edu> # # License: MIT License # sphinx_gallery_thumbnail_number = 3 import numpy as np import matplotlib.pyplot as pl import torch import ot import ot.plot
Data generation

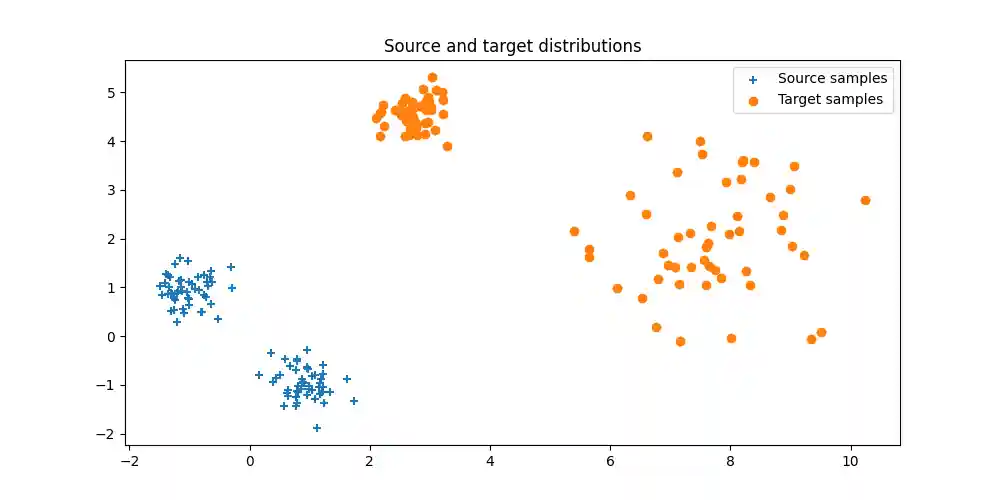

Plot data
pl.figure(1, (10, 5)) pl.clf() pl.scatter(Xs[:, 0], Xs[:, 1], marker="+", label="Source samples") pl.scatter(Xt[:, 0], Xt[:, 1], marker="o", label="Target samples") pl.legend(loc=0) pl.title("Source and target distributions")
Text(0.5, 1.0, 'Source and target distributions')
Convert data to torch tensors

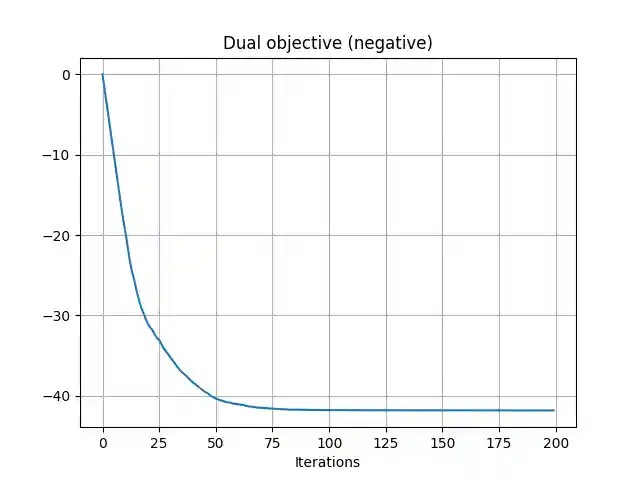

Estimating dual variables for entropic OT
u = torch.randn(n_source_samples, requires_grad=True) v = torch.randn(n_source_samples, requires_grad=True) reg = 0.5 optimizer = torch.optim.Adam([u, v], lr=1) # number of iteration n_iter = 200 losses = [] for i in range(n_iter): # generate noise samples # minus because we maximize the dual loss loss = -ot.stochastic.loss_dual_entropic(u, v, xs, xt, reg=reg) losses.append(float(loss.detach())) if i % 10 == 0: print("Iter: {:3d}, loss={}".format(i, losses[-1])) loss.backward() optimizer.step() optimizer.zero_grad() pl.figure(2) pl.plot(losses) pl.grid() pl.title("Dual objective (negative)") pl.xlabel("Iterations") Ge = ot.stochastic.plan_dual_entropic(u, v, xs, xt, reg=reg)
Iter: 0, loss=0.20204949002247385 Iter: 10, loss=-19.598840195117187 Iter: 20, loss=-31.45275877977004 Iter: 30, loss=-35.654959166703776 Iter: 40, loss=-38.55564856024449 Iter: 50, loss=-40.616177419309466 Iter: 60, loss=-41.31875285406105 Iter: 70, loss=-41.67965100682904 Iter: 80, loss=-41.869261766871475 Iter: 90, loss=-41.90013973873414 Iter: 100, loss=-41.932317369414754 Iter: 110, loss=-41.94220449340273 Iter: 120, loss=-41.950364300815394 Iter: 130, loss=-41.953795308746166 Iter: 140, loss=-41.95599677401932 Iter: 150, loss=-41.957543840951914 Iter: 160, loss=-41.95855874663437 Iter: 170, loss=-41.959284820103846 Iter: 180, loss=-41.959815373763206 Iter: 190, loss=-41.960213442186

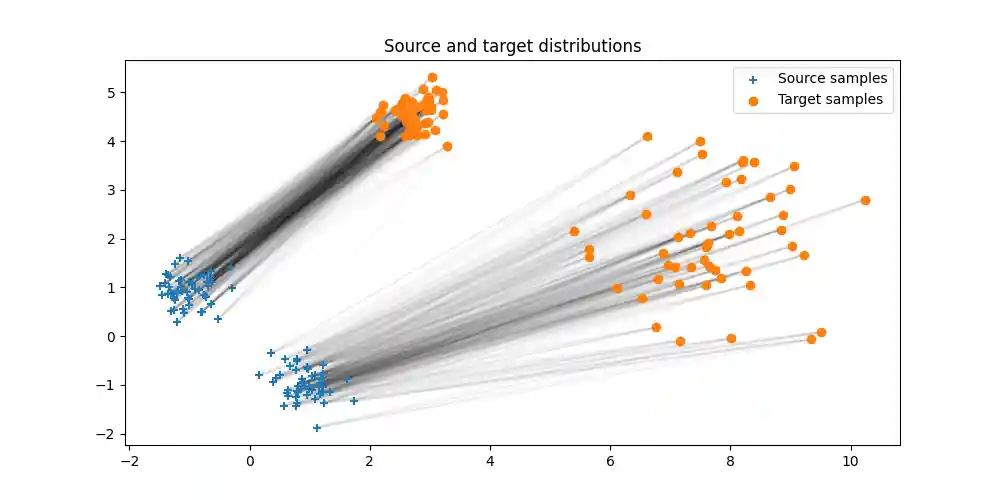

Plot the estimated entropic OT plan
pl.figure(3, (10, 5)) pl.clf() ot.plot.plot2D_samples_mat(Xs, Xt, Ge.detach().numpy(), alpha=0.1) pl.scatter(Xs[:, 0], Xs[:, 1], marker="+", label="Source samples", zorder=2) pl.scatter(Xt[:, 0], Xt[:, 1], marker="o", label="Target samples", zorder=2) pl.legend(loc=0) pl.title("Source and target distributions")
Text(0.5, 1.0, 'Source and target distributions')

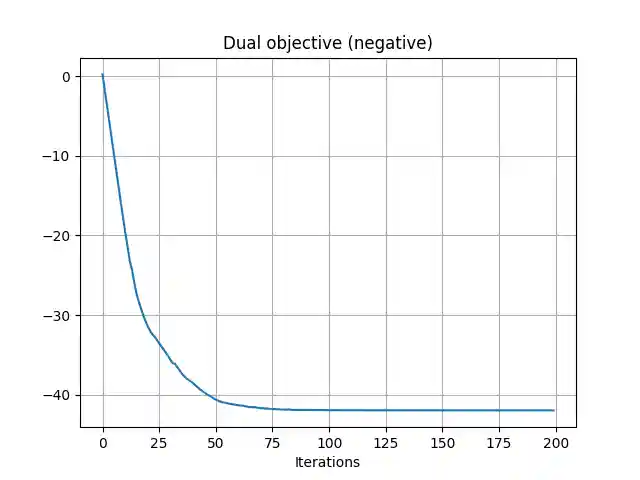

Estimating dual variables for quadratic OT
u = torch.randn(n_source_samples, requires_grad=True) v = torch.randn(n_source_samples, requires_grad=True) reg = 0.01 optimizer = torch.optim.Adam([u, v], lr=1) # number of iteration n_iter = 200 losses = [] for i in range(n_iter): # generate noise samples # minus because we maximize the dual loss loss = -ot.stochastic.loss_dual_quadratic(u, v, xs, xt, reg=reg) losses.append(float(loss.detach())) if i % 10 == 0: print("Iter: {:3d}, loss={}".format(i, losses[-1])) loss.backward() optimizer.step() optimizer.zero_grad() pl.figure(4) pl.plot(losses) pl.grid() pl.title("Dual objective (negative)") pl.xlabel("Iterations") Gq = ot.stochastic.plan_dual_quadratic(u, v, xs, xt, reg=reg)
Iter: 0, loss=-0.0018442196020623663 Iter: 10, loss=-19.482693753355026 Iter: 20, loss=-31.031587667901338 Iter: 30, loss=-35.24412455339648 Iter: 40, loss=-38.34167509988665 Iter: 50, loss=-40.33264368175991 Iter: 60, loss=-41.05848772529333 Iter: 70, loss=-41.498203806732256 Iter: 80, loss=-41.701770668580316 Iter: 90, loss=-41.75788169087051 Iter: 100, loss=-41.78912743553177 Iter: 110, loss=-41.80275113616942 Iter: 120, loss=-41.81127971513494 Iter: 130, loss=-41.81620688759422 Iter: 140, loss=-41.81919900711129 Iter: 150, loss=-41.82131280293244 Iter: 160, loss=-41.82282129129657 Iter: 170, loss=-41.823959203849064 Iter: 180, loss=-41.82483864631298 Iter: 190, loss=-41.825524003745045

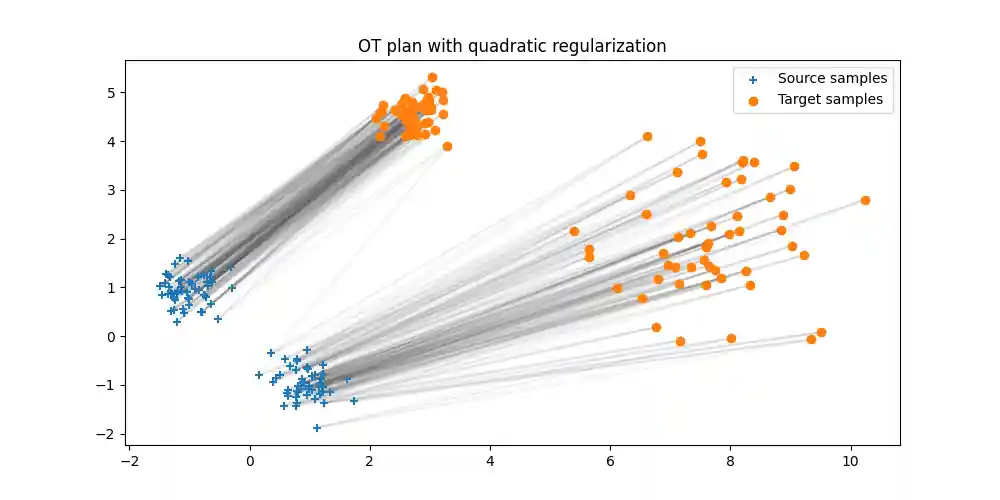

Plot the estimated quadratic OT plan
pl.figure(5, (10, 5)) pl.clf() ot.plot.plot2D_samples_mat(Xs, Xt, Gq.detach().numpy(), alpha=0.1) pl.scatter(Xs[:, 0], Xs[:, 1], marker="+", label="Source samples", zorder=2) pl.scatter(Xt[:, 0], Xt[:, 1], marker="o", label="Target samples", zorder=2) pl.legend(loc=0) pl.title("OT plan with quadratic regularization")
Text(0.5, 1.0, 'OT plan with quadratic regularization')
Total running time of the script: (0 minutes 14.855 seconds)
