GitHub - pathcl/onfire: Experimental firecracker lab

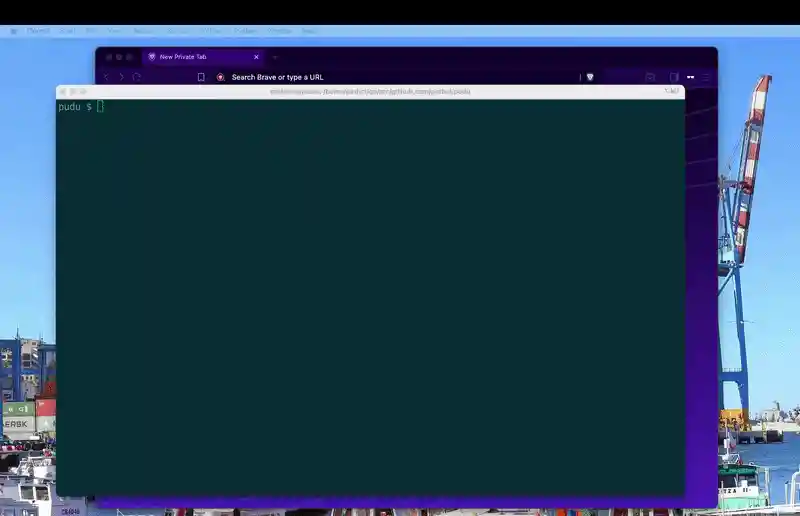

Demo

demo

A chaos engineering platform for SRE on-call training, built on Firecracker microVMs.

Onfire launches fleets of lightweight VMs, injects realistic production failures (disk full, memory leaks, network latency, process crashes, DNS hijacks), and scores trainees on how quickly they diagnose and resolve the incident.

Prerequisites

Requirement Notes
Linux x86_64 KVM-enabled host
/dev/kvm accessible Run as root or add user to kvm group
Go 1.21+ To build from source

From-scratch setup

# 1. Install system dependencies (firecracker, iproute2, iptables, cloud-image-utils)
make deps

# 2. Build binaries (run as your regular user — Go is not in root's PATH)
make build          # produces: onfire, onfire-agent, onfirec/onfirec

# 3. Download kernel + Ubuntu 22.04 rootfs, install agent into rootfs
make assets         # ~500 MB download, takes a few minutes

That's it. TAP networking is created automatically when VMs launch — no manual net-up step needed.

SSH credentials

User: root
Password: root

Usage: REST API server + onfirec client

Start the server (needs root for Firecracker + TAP):

make server
# or manually:
sudo ./onfire server --kernel vmlinux.bin --rootfs rootfs.ext4 --cloud-init-iso cloud-init.iso --port 8888

From another terminal, use onfirec (no root required):

# Install to PATH for convenience
sudo cp onfirec/onfirec /usr/local/bin/onfirec

# Launch a fleet of 2 VMs
onfirec fleet create --count 2

# List fleets
onfirec fleet list

# Stop a fleet
onfirec fleet delete <id>

# Run a scenario
onfirec scenario run scenarios/monolith/disk-full.yaml

# Check live status + score
onfirec scenario status <id>

# Request a hint (costs points)
onfirec scenario hint <id>

# Abort a scenario
onfirec scenario abort <id>

# Point onfirec at a remote server
export ONFIRE_SERVER=http://192.168.1.10:8888

Usage: direct CLI (no server)

Single VM

sudo ./onfire run --kernel vmlinux.bin --rootfs rootfs.ext4 --cloud-init-iso cloud-init.iso

Fleet + web terminal

N=3 make serve
# open http://localhost:8888

Scenario

# Easy — disk full (1 VM, monolith)
sudo make scenario SCENARIO=scenarios/monolith/disk-full.yaml

# Medium — DB connection cascade (3 VMs, microservices)
sudo make scenario SCENARIO=scenarios/microservices/db-connection-exhaustion.yaml

Once running, open http://localhost:8888 in your browser and investigate.

Architecture

┌──────────────────────────────────┐      ┌─────────────────────┐
│  onfire server  (runs as root)     │      │  onfirec  (CLI client) │
│                                  │◀────▶│                      │
│  /api/v1/fleets        (REST)    │ HTTP │  onfirec fleet create  │
│  /api/v1/scenarios     (REST)    │      │  onfirec scenario run  │
│  /ws?vm=N              (WS SSH)  │      │  onfirec terminal N    │
│  /                     (web UI)  │      └─────────────────────┘
└──────────────────────────────────┘
         │
         │ Firecracker
         ▼
┌─────────────────────┐    ┌───────────────────────┐
│  microVM (tapN)      │    │  onfire-agent  :7777    │
│  172.16.N.2          │───▶│  /fault/start         │
│                      │    │  /fault/stop          │
└─────────────────────┘    │  /metrics             │
                            └───────────────────────┘

Networking is created on-demand: each VM gets a dedicated /30 subnet with its TAP device created automatically at launch time.

VM index Host gateway VM IP
0 172.16.0.1 172.16.0.2
1 172.16.1.1 172.16.1.2
N 172.16.N.1 172.16.N.2

SSH into any VM: ssh root@172.16.N.2 (password: root)

Scenario YAML format

scenario:
  id: my-scenario-001
  title: "The Disk That Ate Everything"
  difficulty: easy          # easy | medium | hard | expert
  architecture: monolith    # monolith | microservices | both
  tags: [disk, storage]
  description: |
    Narrative shown to the trainee at scenario start.

environment:
  tiers:
    - name: app
      count: 1
      vcpus: 1
      mem_mb: 512
      services: [nginx, app-server]

faults:
  - id: disk-fill-app
    type: disk              # cpu | memory | disk | network | process | dns
    target:
      tier: app
    params:
      path: /
    at: 0s
    duration: 10m

signals:
  alerts:
    - name: DiskSpaceLow
      severity: critical
      fired_at: 0s
      message: "Disk usage above 95%"
  symptoms:
    - "nginx returns 502 Bad Gateway"

objectives:
  - id: disk-recovered
    description: Disk usage below 80% on app-0
    check:
      type: agent-metric
      target:
        vm: app-0
      metric: disk_used_pct
      condition: "< 80"

hints:
  - text: "Check disk usage with: df -h"
  - text: "Look for large files: du -sh /* 2>/dev/null | sort -rh | head -20"

scoring:
  base: 100
  time_penalty_per_second: 0.05
  hint_penalty: 10
  perfect_window: 5m

Fault types

Type Key params Effect
cpu load (e.g. 80%) Saturates CPUs to target percentage
memory rate (e.g. 30mb/min), ceiling (e.g. 85%) Simulates a memory leak
disk path (default /) Fills filesystem by writing a hidden file
network action (delay/loss/corrupt), latency, jitter, packet_loss Uses tc netem
process service, action (stop/restart/degrade) Manipulates systemd services
dns record, resolve_to Injects a spoofed entry into /etc/hosts

Objective check types

Type Fields Passes when
http path, expected_status HTTP GET returns expected status
agent-metric metric, condition Metric satisfies condition (e.g. disk_used_pct < 80)
process-running service systemd service is active

Available metrics: cpu_pct, mem_used_pct, disk_used_pct, disk_free_mb, load_avg_1

Included scenarios

File Difficulty Description
scenarios/monolith/disk-full.yaml Easy Disk fills completely, app returns 500s
scenarios/microservices/db-connection-exhaustion.yaml Medium Three-stage cascade: DB CPU spike → network latency → API memory leak

Makefile targets

make deps           # install firecracker + system dependencies
make build          # build onfire, onfire-agent, onfirec
make build-onfirec    # build onfirec client only
make assets         # download kernel + rootfs, install agent into rootfs
make server         # start REST API server on :8888
make serve          # launch fleet + web terminal (direct, N=3 default)
make scenario       # run SCENARIO= file (default: monolith/disk-full)
make clean          # remove binaries, images, logs
make cleanup        # tear down all TAP devices

In-VM agent

onfire-agent runs inside each VM on port 7777.

# Health check
curl http://172.16.0.2:7777/health

# Current metrics
curl http://172.16.0.2:7777/metrics

# Inject a fault manually
curl -X POST http://172.16.0.2:7777/fault/start \
  -d '{"id":"test","type":"cpu","params":{"load":"80%","duration":"30s"}}'

# Stop a fault
curl -X POST http://172.16.0.2:7777/fault/stop \
  -d '{"id":"test"}'

Cleanup

make cleanup    # remove TAP devices
make clean      # remove all build artifacts and downloaded images
