Mac Pro
Transformed by Apple silicon.
Mind-blowing performance now comes standard.
Mac Pro is a game-changing combination of Apple silicon performance and PCIe expansion for specialized workflows. And every configuration comes with the incredible M2 Ultra.
Performance
A seismic chip.
M2 Ultra puts a powerful CPU in every Mac Pro. Its GPU with massive unified memory does things other GPUs can’t. And its Media Engine has the performance of seven Afterburner cards built in. Now pros can tackle the most demanding workflows with unprecedented speed and efficiency.
M2 Ultra has arrived. Apple silicon has revolutionized our Mac lineup. Now it comes to Mac Pro with M2 Ultra. It delivers a tremendously powerful CPU and GPU designed around high‑bandwidth unified memory, a Media Engine that effortlessly whips through multiple streams of 8K ProRes video, an ultrafast 32‑core Neural Engine, and our Secure Enclave.
Joining forces. Built from two powerful M2 Max chips, M2 Ultra joins two M2 Max dies through UltraFusion — a custom packaging architecture that provides 2.5TB/s of low‑latency interprocessor bandwidth between the dies using very little power. So M2 Ultra looks like a single piece of silicon to software, which allows apps to scale up to the larger chip.
At the core of it all. The 24‑core CPU in M2 Ultra leverages 16 high‑performance cores and 8 high‑efficiency cores for industry‑leading performance per watt. The up to 76‑core GPU delivers 27.2 teraflops of graphics performance — while up to 192GB of graphics memory can handle larger scenes than the most powerful workstation graphics cards. And the 32‑core Neural Engine executes 31.6 trillion operations per second for accelerated machine learning tasks.
Up to 192GB unified memory
800GB/s memory bandwidth
24-core CPU
Up to 76-core GPU
32-core Neural Engine
24-core CPUruns up to 1.8x faster than a 28‑core
Intel-based Mac Pro1
Up to76-core GPUwith up to 3.4x faster graphics performance2
800GB/smemory bandwidth
Up to192GBunified memory
Up to22 streamsof 8K ProRes video playback3
Support for up to8displays
Compared to a standard Intel-based Mac Pro.
Faster render performance in OTOY Octane X4
Mac Pro with M2 Ultra and
60‑core GPU
7.6 x
Mac Pro with 8-core Intel Xeon W and Radeon Pro W5500X (baseline)
Faster video upscaling performance in Topaz Video AI5
Mac Pro with M2 Ultra and
60‑core GPU
6.9 x
Mac Pro with 8-core Intel Xeon W and Radeon Pro W5500X (baseline)
Faster 8K render performance in Final Cut Pro6
Mac Pro with M2 Ultra and
60‑core GPU
6.4 x
Mac Pro with 8-core Intel Xeon W and Radeon Pro W5500X (baseline)
Faster real-time 3D performance in Autodesk Maya7
Mac Pro with M2 Ultra and
60‑core GPU
4.9 x
Mac Pro with 8-core Intel Xeon W and Radeon Pro W5500X (baseline)
Faster ProRes transcode performance in Compressor8
Mac Pro with M2 Ultra and
60‑core GPU
4.9 x
Mac Pro with 8-core Intel Xeon W and Radeon Pro W5500X (baseline)
Faster computational fluid dynamics performance in NASA TetrUSS1
Mac Pro with M2 Ultra and
60‑core GPU
4.5 x
Mac Pro with 8-core Intel Xeon W and Radeon Pro W5500X (baseline)
Faster project build performance in Xcode9
Mac Pro with M2 Ultra and
60‑core GPU
4 x
Mac Pro with 8-core Intel Xeon W and Radeon Pro W5500X (baseline)
Faster effects performance in Adobe After Effects10
Mac Pro with M2 Ultra and
60‑core GPU
4 x
Mac Pro with 8-core Intel Xeon W and Radeon Pro W5500X (baseline)
Faster simulation performance in Houdini FX2
Mac Pro with M2 Ultra and
60‑core GPU
3.3 x
Mac Pro with 8-core Intel Xeon W and Radeon Pro W5500X (baseline)
Faster filter and function performance in Photoshop11
Mac Pro with M2 Ultra and
60‑core GPU
3.2 x
Mac Pro with 8-core Intel Xeon W and Radeon Pro W5500X (baseline)
Compared to a configured Intel-based Mac Pro.
Faster render performance in OTOY Octane X4
Mac Pro with M2 Ultra and
76‑core GPU
2.7 x
Mac Pro with 28-core Intel Xeon W and Radeon Pro W6900X (baseline)
Faster video upscaling performance in Topaz Video AI5
Mac Pro with M2 Ultra and
76‑core GPU
2.4 x
Mac Pro with 28-core Intel Xeon W and Radeon Pro W6900X (baseline)
Faster 8K render performance in Final Cut Pro6
Mac Pro with M2 Ultra and
76‑core GPU
3 x
Mac Pro with 28-core Intel Xeon W and Radeon Pro W6900X (baseline)
Faster real-time 3D performance in Autodesk Maya7
Mac Pro with M2 Ultra and
76‑core GPU
1.9 x
Mac Pro with 28-core Intel Xeon W and Radeon Pro W6900X (baseline)
Faster ProRes transcode performance in Compressor8
Mac Pro with M2 Ultra and
76‑core GPU
3.8 x
Mac Pro with 28-core Intel Xeon W and Radeon Pro W6900X (baseline)
Faster computational fluid dynamics performance in NASA TetrUSS1
Mac Pro with M2 Ultra and
76‑core GPU
1.8 x
Mac Pro with 28-core Intel Xeon W and Radeon Pro W6900X (baseline)
Faster project build performance in Xcode9
Mac Pro with M2 Ultra and
76‑core GPU
1.4 x
Mac Pro with 28-core Intel Xeon W and Radeon Pro W6900X (baseline)
Faster effects performance in Adobe After Effects10
Mac Pro with M2 Ultra and
76‑core GPU
1.8 x
Mac Pro with 28-core Intel Xeon W and Radeon Pro W6900X (baseline)
Faster simulation performance in Houdini FX2
Mac Pro with M2 Ultra and
76‑core GPU
3.4 x
Mac Pro with 28-core Intel Xeon W and Radeon Pro W6900X (baseline)
Faster filter and function performance in Photoshop11
Mac Pro with M2 Ultra and
76‑core GPU
3 x
Mac Pro with 28-core Intel Xeon W and Radeon Pro W6900X (baseline)
Pro Apps
Thousands of pro apps optimized for Apple silicon.
Because macOS was designed to scale with Apple silicon, M2 Ultra brings a huge boost in app performance and capability to Mac Pro. And there are thousands of apps optimized to unlock the full power of Apple silicon. From rendering effects to compositing 8K scenes to analyzing enormous data sets, your go-to apps run faster and smoother than ever — so you can go all out.

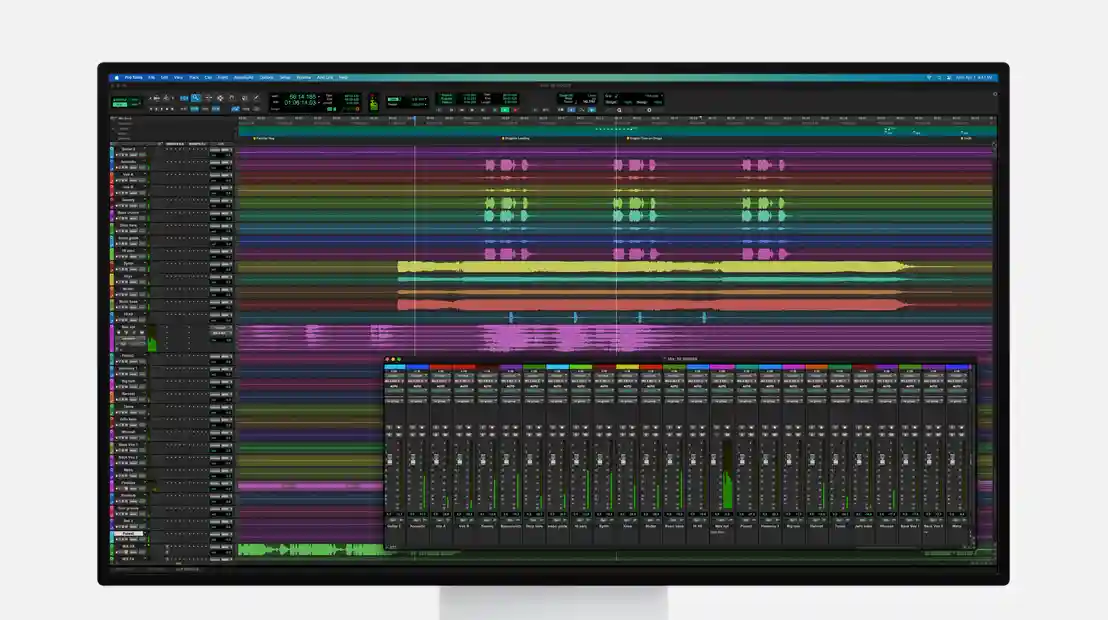

Avid Pro Tools

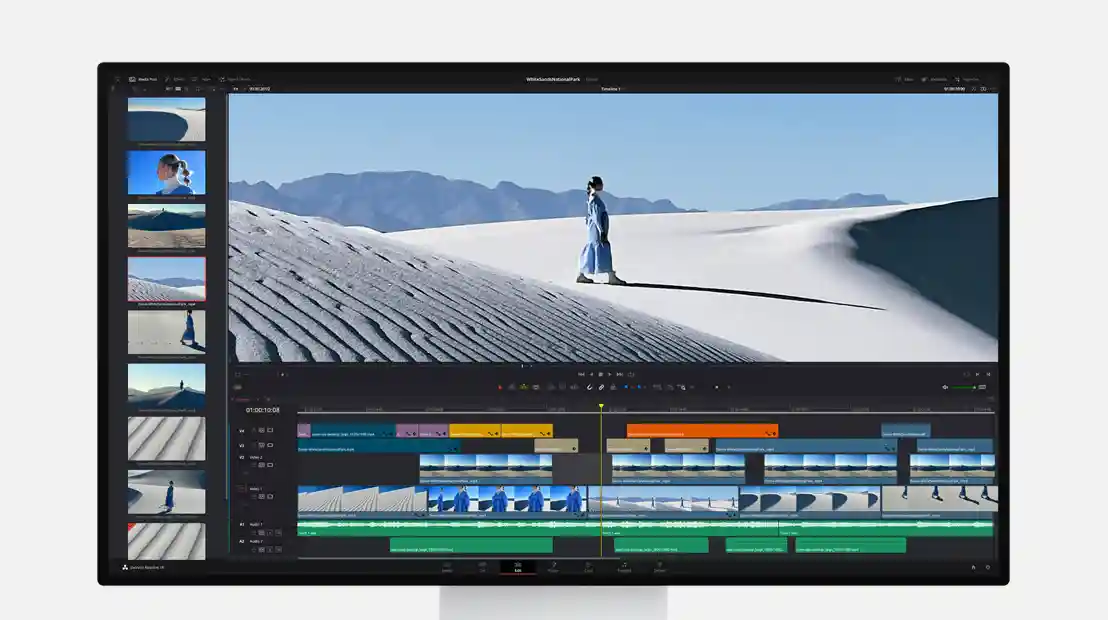

DaVinci Resolve Studio

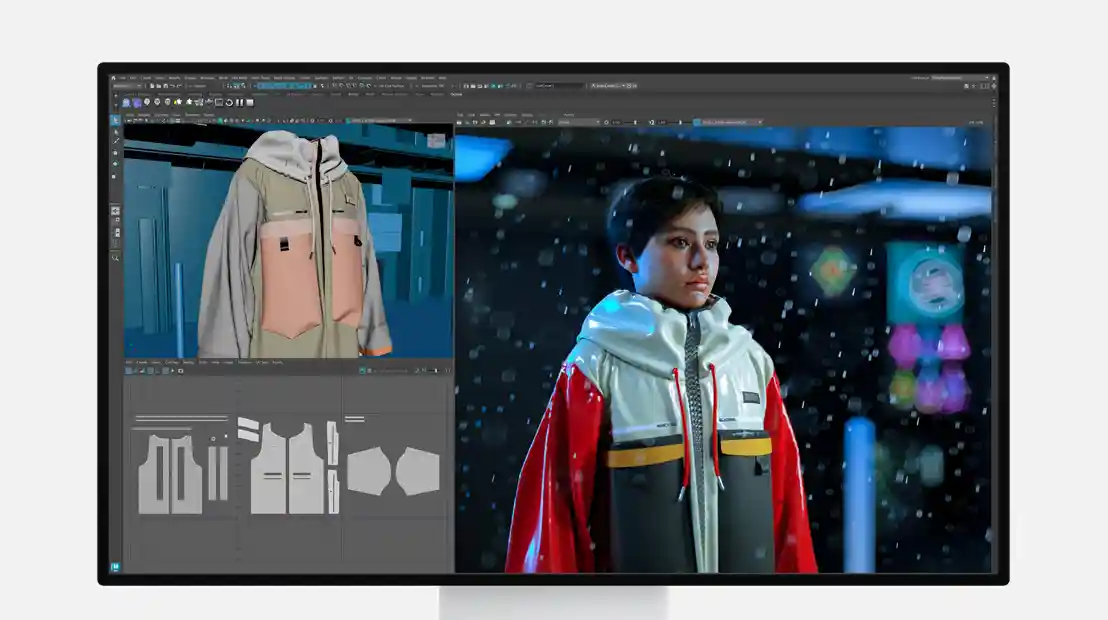

Autodesk Maya with OTOY Octane X Plugin

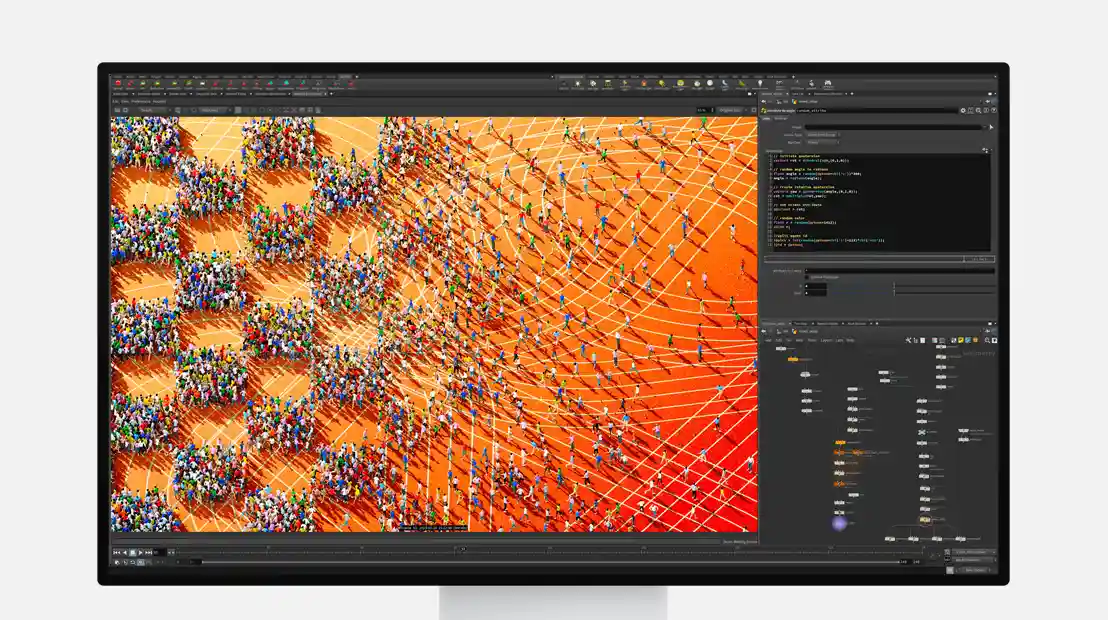

SideFX Houdini
Apple Logic Pro, Avid Pro Tools, Steinberg Cubase,
Ableton Live, and more.
DaVinci Resolve Studio, Apple Compressor, Adobe Media Encoder, Topaz Video AI, Assimilate Scratch, and more.
Autodesk Maya, Blender Cycles, Octane X, Maxon Redshift, Chaos V-Ray, Autodesk Arnold, and more.
Blender, Maxon Cinema 4D, SideFX Houdini,
Adobe After Effects, and more.
Expansion
Expand the capabilities.
For the first time, breakthrough Apple silicon performance is combined with the versatility of PCI expansion. Mac Pro features seven expansion slots, six of which are PCIe gen 4 — providing twice the bandwidth for audio and video I/O, networking, and storage cards. The latest PCIe gen 4 SSD cards, for example, are capable of a colossal 26GB/s.12
One PCIe x4 gen 3
Apple I/O card
Four PCIe x8 gen 4
Two single height
Two double height
Two PCIe x16 gen 4
Double height
Built to flow.
Easy to remove for internal access, the lightweight aluminum housing maximizes airflow while providing an extremely rigid structure.
Keep cards cool.
An unbelievably quiet thermal system keeps PCI cards and other internal components cool under even the most intensive workloads.
High-Speed Connections
Stacked with high-performance I/O.
With an even wider array of advanced connectivity, Mac Pro now has eight Thunderbolt ports. The two HDMI ports support high-bandwidth 48Gb/s HDMI, enabling resolutions up to 8K and refresh rates up to 240Hz. And wireless connectivity enhancements support Wi‑Fi 6E14 and Bluetooth 5.3.
Back
- 6x Thunderbolt 4
- 2x 10Gb Ethernet
- 1x 3.5 mm headphone jack
- 2x USB-A
- 2x HDMI
Rack mount
Smooth deployment.
Mac Pro is also available in a rack mount — with all the same performance features and configuration options as the tower — for spaces better suited to a rack design. The rack mount features the airflow-maximizing 3D lattice and stainless steel handles on the front and tool‑less stainless steel slide rails in place of feet or optional wheels.
Design
Powerful brains. Ingenious design.
Transformed by M2 Ultra, Mac Pro maintains its striking stainless steel space frame, removable aluminum housing, and advanced thermal system. It’s exceptionally solid and stable when rolled, racked, or reconfigured. And thanks to the power efficiency of Apple silicon, the Mac Pro runs cool and quieter under heavy workloads — truly a workstation you can work next to.
Optional wheels.
Optional wheels make Mac Pro easy to transport across the set or from one studio to another.
Stainless steel handles.
Sturdy and comfortable to grip, the rounded handles are part of the space frame itself, making Mac Pro solid and stable when it’s lifted or moved.
Pro Display XDR
Power on full display.
Designed together, Mac Pro and Pro Display XDR pair perfectly for the ultimate workstation. With its 32‑inch 6K Retina display, 1,000,000:1 contrast ratio, up to 1600 nits of brightness,15 and pro reference modes, Pro Display XDR is another game changer for pro workflows.
Touch ID included.
Mac Pro includes the latest Magic accessories and now supports Touch ID for fast, easy, and secure authentication for logins and purchases.
Use AR to see Mac Pro in your workspace.
Open this page using Safari on your iPhone or iPad.
Which desktop is right for you?
Mac mini
Apple M4 chip
or Apple M4 Pro chip
Apple Intelligence16
10‑ to 14‑core CPU
10‑ to 20‑core GPU
16GB to 64GB unified memory
256GB to 8TB storage
Mac Studio
Apple M4 Max chip
or Apple M3 Ultra chip
Apple Intelligence16
14- to 32-core CPU
32- to 80-core GPU
36GB to 512GB unified memory
512GB to 16TB storage
Mac Pro
Apple M2 Ultra chip
Apple Intelligence16
24-core CPU
Up to 76-core GPU
Up to 192GB unified memory
Up to 8TB storage
Designed with the earth in mind.
Recycled materials. Responsible packaging. More power efficient than ever. Mac Pro was engineered to minimize its environmental impact.
